Best Practices for Wiring and Protecting Outdoor Motion Lights
1. Sensor selection: choose PIR or dual-technology sensors rated for outdoor use, mount at 6–10 ft, aim for 30–60 ft detection range, and select 800–2000 lumen fixtures for pathways. 2. Wiring and protection: use GFCI-protected 120VAC circuits, outdoor-rated cable, weatherproof junction boxes with downward entries, and silicone seals at conduits. 3. Installation and testing: de-energize circuit, verify with a voltage tester, adjust sensitivity and timer settings, and perform functional cycle verification. Continue for detailed procedures.
Key Takeaways
- Shut off the circuit breaker and verify de-energization with a voltage tester before wiring or servicing outdoor motion lights.
- Install fixtures in weatherproof junction boxes with downward-facing entries and seal all conduit and cable penetrations with silicone.
- Use GFCI-protected outdoor circuits and outdoor-rated, UV-stabilized cables and connectors for all exterior wiring.
- Mount motion sensors 6 to 10 feet high, maintain clear lines of sight, and avoid obstructions that cause false triggers.
- Inspect lenses, tighten connections, and test sensitivity and timers quarterly; document adjustments and replace degraded bulbs promptly.
Understanding Motion Sensor Technology
Several sensors rely on passive infrared (PIR) technology, which detects changes in heat emitted by moving objects within a defined coverage area. 1. Sensor principles: Passive infrared sensors form the core of motion sensors used for security lighting, they detect thermal contrasts and trigger lights when significant motion crosses a sensor’s field, typical ranges are 30 to 100 feet depending on model and obstructions. 2. Deployment guidance: Mount sensors 6 to 10 feet high to optimize detection capabilities, maintain clear lines of sight and avoid pointing at vegetation to reduce false triggers. 3. Advanced features: Some units use dual-technology with microwave elements and adjustable sensitivity settings to improve reliability, thereby supporting effective home security and energy conservation. Select models list specific detection angles and response times explicitly. Solar-powered lights with multi-mode operation offer flexibility in illumination settings, making them ideal for various security needs.
Choosing the Right Outdoor Motion Lights
1. Select outdoor motion lights based on required brightness and coverage area, specifying lumens and beam angles, for example 1,200–3,000 lumens with 120–140° flood patterns for wide illumination, or 300–700 lumens with 30–60° spot beams for focused entryway lighting. 2. Prefer fixtures with dusk-to-dawn functionality and adjustable sensitivity settings, allowing automatic operation and tuning to reduce false triggers from pets under 20 pounds, while detecting human motion at 10–15 meters. 3. Consider solar-powered options when wiring is impractical, verify solar panel rating and 4–6 hours of direct sun exposure. 4. Balance technical performance with aesthetic appeal, choosing finishes and form factors compatible with the building envelope. Specify IP65 or higher ingress protection for wet locations, guarantee corrosion-resistant materials, and confirm manufacturer warranty installation guidelines. 5. Energy-efficient lights can save up to 80% to 88% on energy costs, making them a sustainable choice for outdoor illumination.
Recommended Products
【High-power LED】:This solar lights outdoor features 144 ultra-bright 5054 high-power LED beads, equipped with convex lenses that focus the light for greater distance.Provide lighting up to 3800sq.ft. It delivers high brightness while consuming less power,making the solar street light more energy-efficient, longer-lasting, and safer to use
⭐ 1. SUPER BRIGHT ILLUMINATION FOR YOUR LIFE Transform your night-time environment with this super bright solar street light outdoor. Whether it's for your backyard, garden path, or patio, the intense brightness ensures clear visibility. A must-have outdoor led solar light for family activities and safe walking at night.
【Upgrade Led Beads & Ultra Wide Angle】: The Ofuray solar street lights outdoor uses 104 super-bright 5054 high-power LED lamp beads with convex lenses for concentrated light that travels longer distances up to 3800sq.ft. It provides 6500K high brightness with low power consumption, making the solar street light more energy-efficient, with a longer lifespan up to 70000 hours and safer to use
Selecting Optimal Mounting Height and Location
Ideal mounting height and location (Section 1): mount fixtures between 6 and 10 feet above finished grade to enhance motion sensor coverage, maintain effective beam angles, and reduce false triggers from small animals. 1. Mounting height and detection range: select 6–10 ft to optimize detection range, avoid excessive elevation that degrades sensor sensitivity, and preserve security effectiveness for typical PIR modules. 2. Site selection in high-traffic areas: prioritize entrances, driveways, and pathways, positioning lights to illuminate expected movement, thereby increasing deterrence and visibility. 3. Line-of-sight and obstruction control: guarantee fixtures remain unobstructed by landscaping or architectural elements, maintain clear lines of sight for reliable activation. Practical example: place fixture 8 ft above a driveway centerline, aimed parallel to traffic. This preserves consistent sensor performance. A consideration when installing outdoor lights is the importance of waterproof ratings to ensure durability in various weather conditions, as noted in modern garden light specifications.
Recommended Products
Adjustable range patterns from 8' up to 40'. The 90 degree pattern can also be adjusted throughout a 180 degree field of view by simply swiveling the housing.
CEILING OCCUPANCY SENSOR uses passive infrared technology, PIR motion sensor to automatically turn ON/OFF lights. This motion sensor features a bright LED indicator when the sensor senses motion.
Customizable Color Temperatures:Choose the perfect ambiance with three adjustable settings—3000K for a warm glow, 4000K for a balanced neutral, and 6500K for crisp, cool daylight—ideal for any outdoor setting.
Pre-Installation Safety Checklist
Power isolation and verification: installers must switch off the circuit breaker and confirm conductors are de-energized with a voltage tester. 1. Confirm de-energization and controls: before any contact, turn the power off at the panel, verify with a voltage tester on all conductors, tag the breaker, and record panelID and circuit number for reference. 2. Compliance and protective devices: verify ground-fault circuit interrupters are present on outdoor circuits, confirm adherence to local electrical codes for conduit, cable ratings, and mounting heights, and select waterproof boxes rated for IP65 or higher for junctions. 3. Preparatory equipment: assemble required tools, including wire strippers, wire nuts, electrical tape, labeled connectors, and a flashlight to streamline the installation process. Maintain documentation and photograph connections for post-installation verification records. Consider the ideal mounting height for solar motion lights, which is recommended to be between 6-10 ft, to ensure optimal coverage and performance.
Wiring Basics and Required Tools
Safety consciousness guides all wiring work, requiring that conductors be de-energized at the panel, verified with a voltage tester, and tagged before handling. 1. Tools and preparatory steps: list includes screwdrivers, wire strippers set to 3/8 inch, lineman’s pliers, voltage tester, wire nuts sized for 14–12 AWG, electrical tape, and a weatherproof junction box; using weather-resistant cables rated for outdoor use is necessary to guarantee safety. 2. Wiring process: installation is crucial to match colors and connect wires—black to black (hot), white to white (neutral), green/bare to ground—secure connections with wire nuts and tape, and route cable to avoid strain. 3. Compliance: adhere to local electrical codes, install GFCI protection, and verify operation of motion sensor outdoor unit. Document circuit labeling and photograph connections. Remember to consider IP65 weatherproof rating for outdoor lights to ensure resilience against rain and dust, as mentioned in various reliable models.
Recommended Products
Sturdy and Elegant Design: Our hard top 20x14 gazebo kit, constructed with a metal frame, brings an elegant touch to your backyard gazebo that will make any yard, garden, or patio complete.

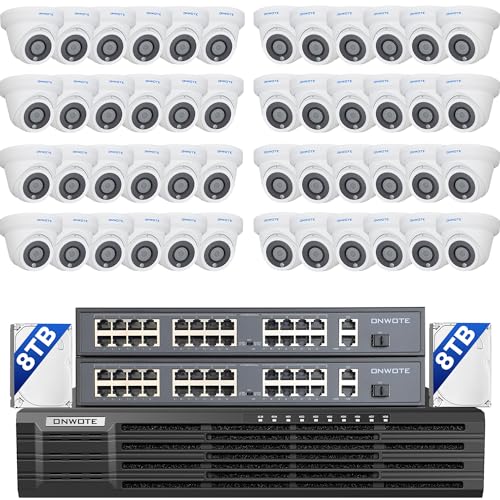

Facial Recognition-- Recognizes people to reduce false alarms and save storage space.
Smart AI Human Vehicle Detection-- Reduce false alarms and save storage space.
Weatherproofing and Moisture Protection
1. Section 1: Enclosures and seals. Use weatherproof junction boxes no smaller than 4x4x2.125 inches for all outdoor wiring connections, positioned so entry points face down to reduce moisture ingress, and mount boxes at least 12 inches above grade where possible. Apply silicone sealant around conduit and cable entries, using a 1/4-inch bead and tooling to guarantee continuous contact with cable jackets. Section 2: Cable selection and routing. Choose outdoor-rated, weather-resistant cables with UV-stabilized jackets and temperature range −40°F to 140°F, maintain 1/2-inch minimum slack for thermal movement. Inspect annually for corrosion, nicks, or brittle insulation, replace damaged runs promptly. Mention Ground Fault Circuit Interrupters as required for electrical safety, consult local code. Labeling and documentation should accompany every run for future maintenance inspection. Consider using solid brass outdoor fixtures for their durability and corrosion resistance, enhancing the longevity of your lighting setup.
Recommended Products
Nature's Generator 1800W Generator
COLOR: Off-White | RMU SIZE: 15U | External Dimensions (Width x Depth): 600 x 550 mm / 23.62 X 21.65 inch | Internal Depth: 500mm / 19.6 Floor Mount
✅【HEAVY DUTY】NEMA 14-50R receptacle power outlet, 50A 125V/250V with type 3R enclosure rainproof which compatible with the nomal 50A Nema 14-50P RV cord.
GFCI and Circuit Protection
Ground-fault circuit interrupters (GFCIs) are devices that monitor current balance between the hot and neutral conductors, and when they detect an imbalance on the order of about 4 mA they rapidly disconnect power to substantially reduce the risk of electric shock in wet or damp outdoor environments. 1. Requirements: The NEC mandates GFCI protection for all outdoor circuits, including receptacles and lighting runs, to mitigate electrical hazards, use 20 A or 15 A breakers. 2. Implementation: Install GFCI circuit breakers or GFCI receptacles at the source, test monthly using the built-in button, and use weather-resistant cables rated UV and moisture, typically 12/2 or 14/2 cable. Many solar-powered options reduce energy costs, making them more sustainable for long-term use. 3. Best practices: Combine GFCI protection with proper circuit breakers, secure connections, and follow local codes for electrical work.
Recommended Products
Impact-Resistant Exterior: Durable resin construction with a low-maintenance, impact-resistant exterior for long-lasting use.
Industrial Outdoor Generator: Ideal for a wide variety of industrial lighting and tools, this industrial generator also provides 7,000 watts for 10 seconds to start larger equipment, including industrial motors up to 3hp
【Strong Load Capacity】GM10500iETC has the maximum power among single cylinder silent inverter generator, the whole machine can work stably at 8500w running watts and 10500w starting watts on gasoline, 8000w running watts and 9500w starting watts on LPG, 6800w running watts and 8400w starting watts on Natural Gas, so large load starting current equipment, air compressor/blower/air conditioner can carry at one time.THD less than 3% perfect for sensitive equipments such as computer and cell phone.
Proper Sensor Adjustment and Settings
Mounting and angle of the sensor: Mount at 6 to 10 feet, orient sensors toward pathways and entry points, set angle to encompass the intended detection area while avoiding direct exposure to wind or traffic. Sensitivity settings and detection area: Adjust sensitivity settings to detect larger human movements, test perimeter to minimize false triggers from small animals, fine-tune until the device only responds to desired motion. Timer duration: Set timer duration between 30 seconds and several minutes to balance illumination and energy use. Regular maintenance: Inspect after storms or seasonal changes, recalibrate as needed. For optimal performance, ensure proper placement of the motion sensor lights to maintain full sun exposure and efficient solar charging.
Testing and Commissioning Your Installation
1) Pre-energization checks: use a voltage tester at junctions and fixture leads to verify 120V or 240V presence as specified, check wiring polarity and grounding, confirm connections are secured with wire nuts or heat-shrink and electrical tape to prevent moisture ingress. 2) Functional testing: walk the detection area at normal gait, trigger motion sensors at 3–10 m ranges and 0.5–1.5 m/s lateral speeds, verify lights activate consistently, record any dead zones. 3) Adjustment and commissioning: adjust sensitivity and timer settings to balance detection versus false triggers, document final settings. 4) Monitoring and documentation: monitor operation for 72 hours, log events, note intermittent failures, and inspect connections if anomalies appear. Include photos, timestamps, and terminal torque values, for example 7–12 in-lb, in the report regularly. When selecting outdoor motion lights, consider dusk-to-dawn sensors for automatic on/off capabilities based on ambient light, as they enhance convenience and energy efficiency.
Routine Maintenance and Cleaning
When establishing a routine maintenance schedule, 1. Inspect and clean sensor lenses and housing every 3 months, removing debris with a soft cloth and isopropyl wipe to guarantee peak detection and reduce false alerts. 2. Verify sensitivity and timer settings seasonally, adjust detection range to 10–15 meters and timeout to 30–120 seconds, documenting changes for reference. 3. Replace bulbs immediately when output falls below 70% lumen rating, match wattage and socket type, dispose per local codes. 4. Examine wiring connections annually for corrosion, loose terminals, frayed insulation, tighten to manufacturer torque specs and apply dielectric grease where specified. 5. For solar panels, perform cleaning monthly during dusty periods, use mild detergent and rinse, confirm panel angle and unobstructed sunlight. Consistent exposure to sunlight is critical for reliable operation of solar-powered motion lights as it ensures optimal charging and performance. Record actions in maintenance log.
Troubleshooting Common Problems
Why proceed systematically when diagnosing outdoor motion lights is essential to secure safety, conserve energy, and extend equipment life? 1. Inspect wiring and electrical connections: check for loose, corroded, or damaged conductors, measure voltage with a tester (120 V typical branch circuit), confirm color codes (black hot, white neutral, green/bare ground), and retighten connectors to specified torque. 2. Verify power and circuit breaker: ascertain breaker is on, test for live feed at fixture, and trace upstream faults. 3. Adjust sensitivity settings and aim sensor: reduce range to limit false triggers from small animals, reposition sensor 10–20 degrees away from traffic. 4. Clean and test functionality: remove debris from lens, operate unit through full cycle, and document corrective actions. Replace damaged components promptly when identified.
When to Hire a Professional
How should a property owner determine whether to engage a licensed electrician, considering safety, code compliance, and the electrical complexity of the installation? 1. Assessment: Evaluate site size, required circuit capacity, and conduit length, for example a 20 A circuit over 100 ft, where a professional should install motion sensor fixtures to guarantee safety and correct wiring. 2. Complexity: When integration with panel, GFCI protection, or multi‑fixture controls is needed, hire a professional to avoid code violations and reduce hazard risk. 3. Compliance: Permit acquisition and verification of local regulations are tasks best managed by a licensed electrician. 4. Troubleshooting: Persistent functionality failures or intermittent tripping require expert diagnosis, measurement tools, and corrective actions. Reassurance: licensed professionals provide documented inspections, testing, and warranties regularly.
Frequently Asked Questions
How to Hide Wires for Outdoor Lights?
The installer hides wires using proper wiring techniques: conduit, cable management clips, weatherproof junction box and underground installation. Concealment options include decorative landscaping, mulch, and matching exterior finishes to blend and protect outdoor lighting cables.
What Is the Rule of Thumb for Outdoor Lighting?
One mounts six to ten feet high and positions for ideal detection, outdoor light placement, considering motion sensor types, leveraging energy efficiency benefits, ambient light integration, security lighting tips, landscape lighting ideas, maintenance schedule recommendations.
What Is the Disadvantage of Outdoor Motion Sensor Lights?
They have drawbacks: motion sensor limitations cause false triggers, creating maintenance needs and security concerns; installation challenges and wiring complexities complicate work, while limited power source options add cost and constrain placement and reliability issues.
How to Keep Outdoor Lights From Rusting?
Like armor against salt spray, they keep outdoor lights from rusting by using rust resistant materials, proper installation techniques, sealing connections, choosing durable fixtures, weatherproof coatings, regular maintenance checks, avoiding harsh chemicals for long-term protection.
